Controlling temperature is not always as simple as setting a value and letting the system run. In many industrial processes, sudden temperature changes can lead to material stress, uneven results, or even product failure. Holding a constant temperature alone is often not enough when the process demands gradual heating, controlled cooling, and precise timing at each stage.

This is where ramp and soak control become essential. Instead of jumping directly to a setpoint, the system needs to follow a defined temperature path step by step. In this blog, you will understand what a ramp and soak temperature controller is, how it works, and why it is critical for achieving consistent and reliable thermal performance.

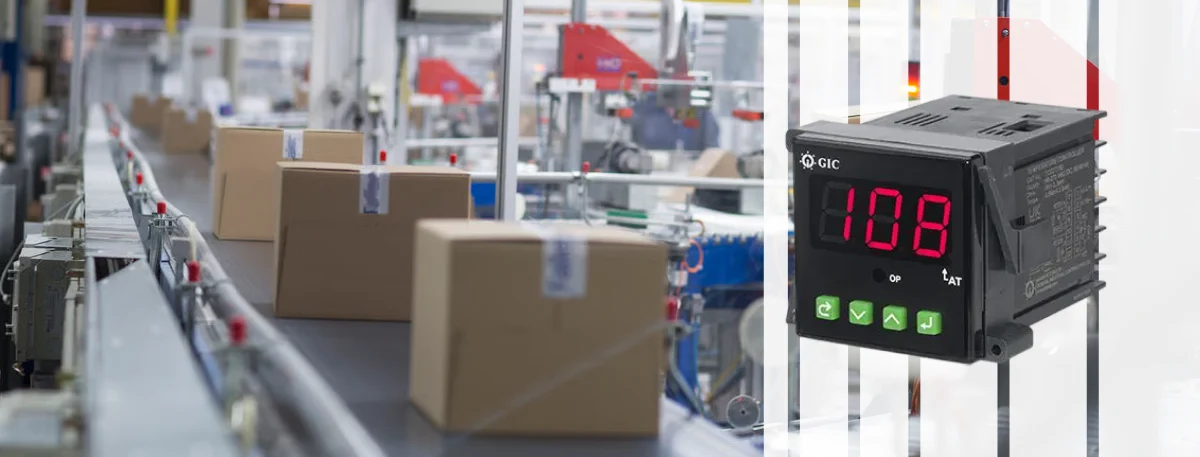

A ramp and soak temperature controller is a programmable control system that regulates temperature in stages by gradually changing temperature at a defined rate and holding it at specific levels for a set duration.

Unlike standard control systems that maintain a single setpoint, this controller follows a predefined temperature profile. It allows precise control over heating and cooling cycles, which is essential for processes that require controlled transitions and stable holding periods.

Read more: What is a PID Controller?

Ramp and soak segments are individual steps within a programmed temperature profile, where each segment defines a specific ramp rate, target temperature, and hold time.

A complete program consists of multiple segments arranged in sequence:

• Each segment has a target temperature
• Each segment defines how fast temperature should change
• Each segment includes a soak duration at the setpoint
• Segments run one after another to form a full temperature cycle

Example:

• 5 °C per minute
• 10 °C per hour

Soak duration

Once the target temperature is reached, the system maintains stable temperature regulation for a fixed duration before proceeding to the next segment.

Ramp and soak control works by following a programmed temperature path instead of maintaining a single fixed value. The controller executes this path in stages, ensuring controlled temperature change and stable holding at each level for consistent process results.

Step 1: Ramp phase

During the ramp phase, the controller gradually increases or decreases the temperature from the current process variable to the target setpoint at a controlled response rate.

This controlled transition:

• prevents thermal shock
• reduces material stress
• improves uniform heating
• minimizes temperature fluctuation

The controller continuously compares sensor input with the programmed setpoint and adjusts the actuator output accordingly.

Importance of ramp control

Controlled ramping is critical in industrial processes where rapid thermal change can damage materials or affect process stability.

Industries requiring controlled ramping include:

• semiconductor manufacturing
• pharmaceutical processing
• ceramics production
• metal heat treatment

Step 2: Soak phase

Once the target temperature is reached, the controller enters the soak phase and maintains stable thermal regulation for a programmed duration.

During this stage, the feedback control loop continuously adjusts heating or cooling output to maintain precise temperature stability.

The soak phase allows:

• uniform heat distribution
• chemical stabilization
• material conditioning
• complete thermal processing

Importance of soak control

Stable soak periods improve product consistency and reduce process defects caused by uneven thermal exposure.

Read more: How To Choose the Right Temperature Controller?

Ramp and soak temperature regulators offer programmable and precise control for staged thermal processes.

• Multi step temperature programming for complex heating and cooling cycles
• Adjustable ramp rates for controlled temperature change
• Configurable soak time for stable holding at each stage
• High accuracy control using RTD or thermocouple inputs
• Support for multiple segments in a single program
• Digital interface for easy monitoring and configuration
• Consistent repeatability across production cycles

They improve process control, consistency, and product quality in temperature critical applications.

• Prevents thermal shock by controlling rate of temperature change
• Ensures uniform heating and cooling across the process
• Improves product consistency and reduces defects
• Enables automation of complex temperature profiles
• Reduces manual intervention and operational errors
• Enhances process reliability and repeatability

Modern industrial automation systems require more than simple steady state temperature control. Many manufacturing processes depend on carefully controlled heating and cooling sequences to maintain material properties and process consistency.

Ramp and soak controllers improve:

• thermal regulation accuracy
• process repeatability
• product consistency
• energy efficiency
• closed loop control stability

Read more: Common PID Temperature Controller Problems and Solutions

Ramp and soak temperature controllers provide precise and programmable thermal regulation for processes requiring gradual temperature transition and controlled holding periods.

Unlike standard temperature controllers that maintain a single setpoint, ramp and soak systems execute complex multi stage temperature profiles that improve process stability, reduce thermal stress, and enhance product consistency.

With advanced feedback control, programmable sequencing, and industrial automation integration, ramp and soak controllers have become essential in modern thermal processing applications across manufacturing, pharmaceuticals, electronics, ceramics, and heat treatment industries.
