Reliable Earth Leakage Relays (ELR) for Advanced Fault Protection
A precision safety device called an Earth Leakage Relay (ELR) is designed to identify even the smallest current leaks to the ground, shielding workers and equipment from electric shocks and system failures. Through constant observation of the equilibrium between incoming and outgoing currents, it identifies insulation failures or unintended earth connections and acts swiftly to isolate the fault.
Offering selectable leakage sensitivity from 30 mA to 30 A and trip delay up to 10 seconds, it features advanced nano-crystalline CBCT for pinpoint accuracy, instantaneous trip at 5x threshold, LED fault indicators, and RS-485 communication. With manual or remote reset and wide auxiliary voltage compatibility, it ensures dependable protection in control panels, mining systems, variable-speed drives, HVAC setups, and industrial safety infrastructure.
Supply Voltage +
Mode +
Mounting +
Relay +
No. Of Programs +
Display +
Power Reserve +
Clock Accuracy +
Pre-Programmed +
Accessories +
Product visibility +
Analog Input +
Base/Ext +
Bazel type +
Center Distance +
Clock +
Control Action +
Display with & without +
Input/Output +
No. of digits +
No. of set points +
Output +
Output 1 +
Output 2 +
Output 3 +
Product Type +
Read Out +
Register +
RS485 Communication +
Sensor Input +
Size +
Termination +
Contact +
Delay +
Enclosure Design +
Function +
Input Voltage +
Output Current +
Output Voltage +
Power +
Relay Output +
Supply +
Timing Range +
Variant +
Alarm Output +
Analog Output +
Auto Reset time +
Auxiliary Supply +
CBCT Size +
Colour +
Current Range +
Digital Display +
Digital Input +
Digital Output +
Display Colour +
High Speed Inputs +
Input Signal +
LCD Display +
Leakage Current +
Module +
Neutral Loss +
Output Signal +
Over Frequency +
Over Voltage +
Phase Asymmetry +
Phase Loss +
Phase Sequence +
Reset +
Sensor Supply +
Series +
Settable Off Delay +
Settable On Delay +
System +
Transistor Output +
Under Frequency +
Under Voltage +
Voltage +
Earth Leakage Relays (ELRs) constitute indispensable safeguarding apparatus within electrical infrastructures, meticulously engineered to discern and mitigate deleterious earth fault currents. These sophisticated protective devices continuously scrutinize current disparities between live conductors and earth pathways, instantaneously triggering corrective measures upon detecting anomalous leakage exceeding predetermined thresholds.
Modern earth leakage indicator feature comprehensive parameter configurability—spanning leakage sensitivity from 30mA to 30A, adjustable trip delays up to 10 seconds, and versatile auxiliary supply compatibility across 110-415V AC/DC ranges. Incorporating nano-crystalline core-balanced current transformers for enhanced precision, these relays provide instantaneous tripping at quintuple set values while offering diagnostic LED indicators, manual/remote reset capabilities, and RS485 communication protocols.
Their deployment spans diverse applications including low-tension control panels, mining operations, variable-speed drives, HVAC systems, and fire protection circuits—ensuring comprehensive electrical safety across industrial and commercial installations through continuous monitoring and rapid fault isolation.
Why is ELR Important?
An Earth Leakage Relay, or ELR, is an essential component in electrical systems due to its vital role in providing earth leakage protection. Its importance lies in the ability to detect and respond to potentially hazardous leakage currents that can lead to electric shocks or electrical faults.
The primary reason to use an earth leakage protection relay is to enhance electrical safety. It acts as a protective measure by continuously monitoring the current flowing between the live conductors and the earth. If an abnormal current or leakage exceeding the set threshold is detected, the earth fault monitoring relay initiates a protective action to prevent accidents or equipment damage.
Some of the features earth leakage detector include
Applications of earth leakage indicator
Frequently Asked Questions
{
“@context”: “https://schema.org”,
“@type”: “FAQPage”,
“mainEntity”: [{
“@type”: “Question”,
“name”: “What is Earth Leakage and its causes?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “Earth Leakage is an accidental situation in which a conductor carrying current touches the earth or equipment, either directly or indirectly, which can cause a current flow to the ground. The leading causes of earth leakage are insulation failure, faulty wiring, ageing electrical environments.”
}
},{
“@type”: “Question”,
“name”: “What is Earth Leakage Relay?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “Earth Leakage Relays are used to detect potentially dangerous earth leakage fault currents & isolate the load by tripping the relay before they cause any hazard.”
}
},{
“@type”: “Question”,
“name”: “What is the range available in GIC Earth Leakage Relays?”,
“acceptedAnswer”: {
“@type”: “Answer”,

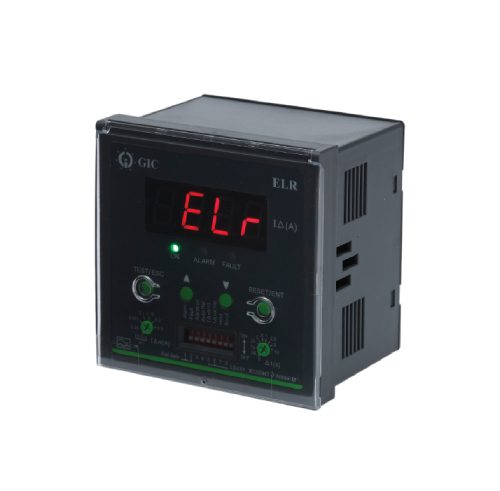

“text”: “GIC offers variants in Earth Leakage Relay as Flush Mount (96 x 96 mm) and DIN Mount.”
}
},{
“@type”: “Question”,
“name”: “What is the Leakage current range in the GIC Earth Leakage Relay?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “It has a wide range of selectable Earth leakage current; 30mA – 30A”
}
},{
“@type”: “Question”,
“name”: “What is the advantage of Digital Earth Leakage Relay over analogue?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “Digital Earth Leakage Relay has 4 digits 7-segment LED display, which shows the present leakage current in the system. It is helpful from Analogue Earth Leakage relay models where present value cannot be monitored continuously.”
}
},{
“@type”: “Question”,
“name”: “How many LED indications are provided in the GIC Earth Leakage Relay?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “There are 3 LED’s provided
Power On – ON (Green LED)
Alarm – ON (Yellow LED) @ Alarm relay trips, at 60% of set Leakage Current
Fault – ON (Red LED) @ 85% of set Leakage Current & blink during CT open condition”
}
},{
“@type”: “Question”,
“name”: “What all compliances do GIC Earth Leakage Relay follow?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “The entire range of Earth Leakage Relays is CE & ROHS approved.”
}
},{
“@type”: “Question”,
“name”: “What is the auxiliary supply range available in the GIC Earth Leakage Relays?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “GIC offers a wide range of supply range; 110-240 VAC/DC and 220-415 VAC/DC”
}
}]
}
