96×96 mm PID Temperature Controller

Home » Products » 96×96 mm PID Temperature Controller

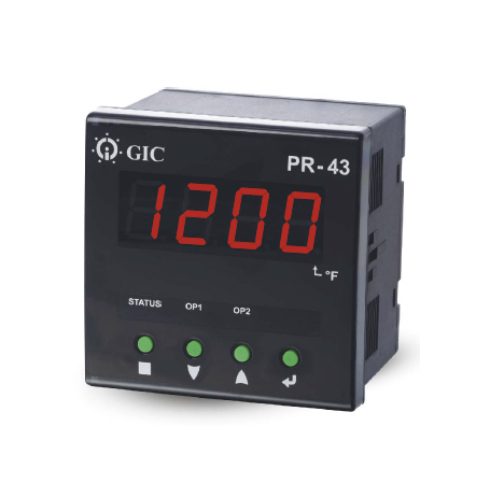

96×96 mm PID Temperature Controller

96×96 mm PID Temperature Controller

96×96 mm Digital PID Temperature Controller

Key Features

  • Flush Mounting Version 96×96 mm with Dual Line Digital Seven Segment Display
  • Universal Input
  • Configurable Output combination
  • Configurable: Band, Deviation, Sensor break & Loop break alarms
  • Single/Dual acting PID controllers with 4 Control modes
  • Analog Voltage/Current Inputs (0-5V, 1-5V, 0-10V / 4-20mA) & Outputs (0-10V / 4-20mA)
  • Auto-tuning PID with provision for Soft-Start
  • 6 Segment Ramp & Soak profile with Power Failure resumption modes
  • Rapid Set Point change feature
  • RS485 Communication
  • Bumpless Auto-Manual transfer
  • IP 20 (for Terminals & Enclosure) IP 40 (for Front Panel only)
  • Timer functionality with settable time from 1min to 9999 min
  • CE and RoHS complied
Clear selection
SKU: N/A Category:
Download Catalog

Available Variations
SKU Description Quantity Add to Cart
151J43B1151J43B1 3 Relays (SPST 5A each) with RS485
151F42B151F42B 2 Relays (SPST 5A each), SSR driving output (12 VDC, 24 mA)
151G42B151G42B 1 Relay (SPST 5A), Analog output (0-10V, 4-20 mA), SSR driving output (12 VDC, 24mA)
151H42B151H42B 2 Relays (SPST 5A each), Analog output (0-10V, 4-20 mA)
151J42B151J42B 3 Relays (SPST 5A each)
151K42B151K42B 1 Relay (1 C/O 10A), SSR driving output (12 VDC, 24 mA)
151L42B151L42B 2 Relays (1 C/O 10A & SPST 5A), SSR driving output (12 VDC, 24 mA) without Analog Input
151H43B1151H43B1 2 Relays (SPST 5A each), Analog output (0-10V, 4-20mA) with RS485
151M42B151M42B Series PR 43, Relay Output (SPDT 10A) & SSR driving output (12 VDC, 24mA max), One Relay Output (SPDT 5A)
151N42B151N42B Series PR 43, Relay Output (SPDT 10A) & SSR driving output (12 VDC, 24mA max)
151F43B1151F43B1 2 Relays (SPST 5A each), SSR (12 VDC, 24mA) with RS485
151G43B1151G43B1 1 Relay (SPST 5A), Analog output (0-10V, 4-20mA), SSR (12 VDC, 24mA) with RS485
151J43B151J43B 3 Relays (SPST 5A each)
151G43BNo description available
151H43BNo description available
151F43B151F43B 2 Relays (SPST 5A each), SSR (12 VDC, 24mA)
