Product Category

HMI, Process Controls, Monitoring Devices

Product

HMI, VMR, PLC

Application

Calorifier Control Panels

Precision in Every Action With GIC

Introduction

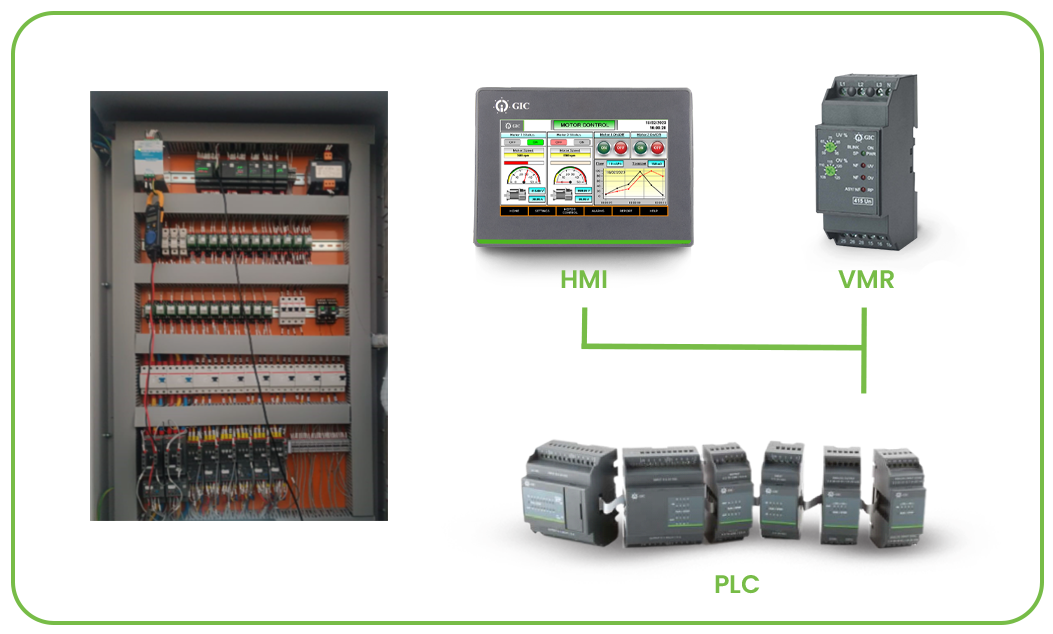

In this case study, we’re diving into how three important tools – the HMI 7” Non-Ethernet, PL100 Series PLC with Digital/Analog Extension, and VMR – work together in a calorifier control panel. These tools help keep things running smoothly and control the temperature effectively. Let’s explore how they make a difference!

Challenges

Here are some common challenges associated with manual control of Calorifier Control Panels:

  • Temperature Regulation
  • Energy Efficiency
  • Safety Concerns
  • Consistency in Operation
  • Monitoring and Diagnostics
  • User Interface Complexity

Solution

HMI 7″ Non-Ethernet:
GIC’s HMI provides a user-friendly interface for monitoring and controlling the Calorifier Control Panel, offering intuitive design and functionality for easy access to system parameters, alarms, and settings.

PL100 Series PLC with Digital/Analog Extension:
The PLC, combined with Digital/Analog Extension modules, delivers precise control over the Calorifier Control Panel, leveraging programmable logic capabilities and extension modules for seamless integration of digital and analog inputs/outputs.

Voltage Monitoring Relay Application:
A voltage monitoring relay is a device used to monitor voltage levels in electrical systems and take action based on preset thresholds. In the context of a calorifier control panel, which is used for controlling the temperature of water in a calorifier (a vessel used for heating water), a voltage monitoring relay can serve various functions to ensure the safe and efficient operation of the system.

Result

Utilizing a PLC (Programmable Logic Controller) for Calorifier Control Panel design ensures efficient management of your water heating system, providing reliable operation for your calorifier, a device essential for heating water for diverse applications.

The GIC Effect

Cost-Effective Solution.

After-Sales Service Support.

Made in India Product.

Committed for quality product with CE, ROHS certification.

Since ISO Certified organization.
