Introduction

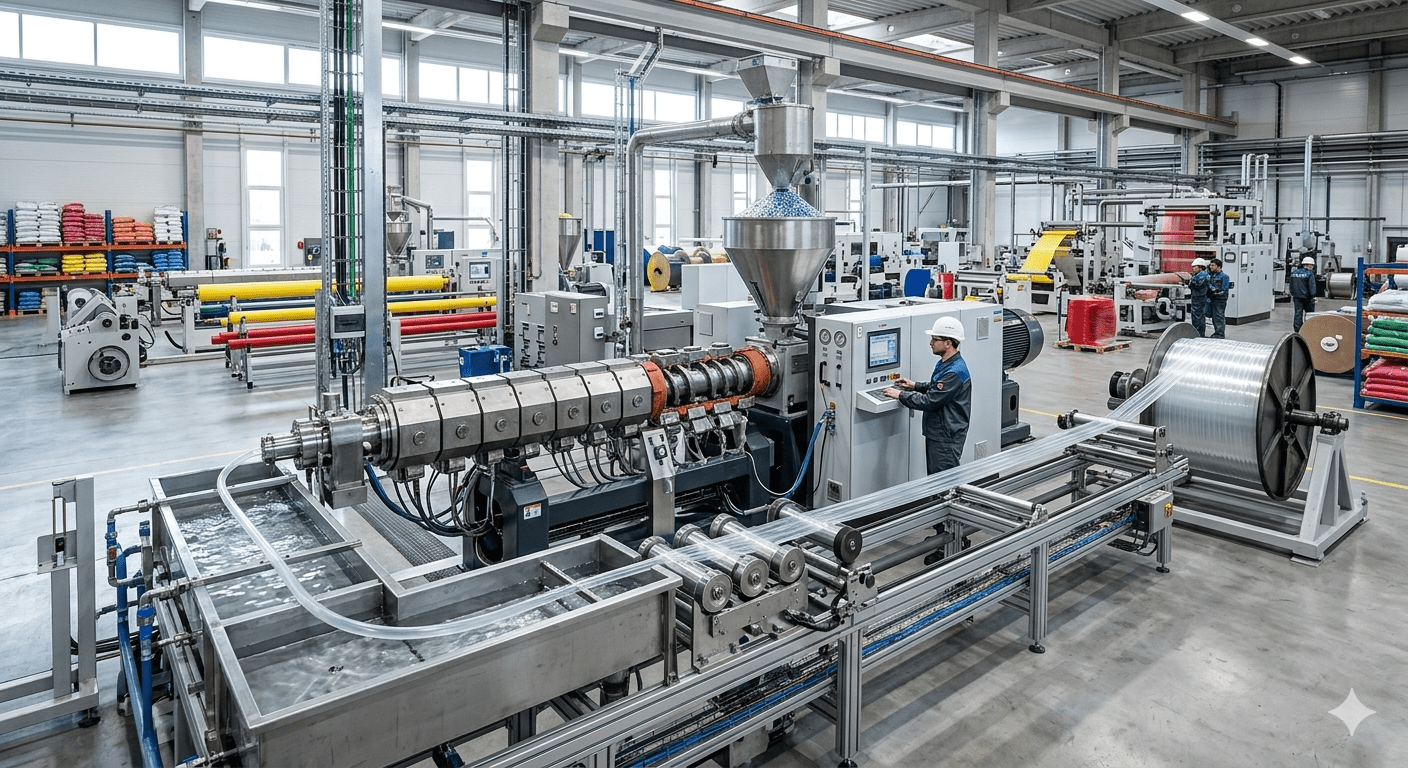

A modern pipe manufacturing line consists of a plastic extruder with multiple heating zones, die head, vacuum calibration unit, water cooling bath, haul-off system, and winding unit—all integrated with a PID-based temperature controller.

Flexible PVC compounds are fed into the hopper, melted inside the extruder barrel (typically 140 °C to 200 °C), and pushed through a circular die to form a continuous pipe.

The extruded pipe is then sized, cooled, pulled, and wound into coils. The entire process requires precise thermal and process control to ensure flexibility, strength, and uniformity.

Challenges

  • PVC is a heat-sensitive material with a narrow processing window—excess temperature can cause degradation, discoloration, and reduced mechanical strength.

  • Inconsistent pipe diameter and wall thickness due to unstable melt flow and improper synchronization between extrusion and haul-off speed.

  • Surface defects such as roughness, bubbles, or cracks caused by improper plasticization or temperature fluctuations.

  • Poor flexibility in garden pipes due to uneven heating and mixing of plasticizers.

  • Cooling inconsistencies leading to internal stresses, affecting durability and life of the pipe.

Solution

GIC Digital PID Temperature Controller – TCS4U45A0

Sensor Type: Thermocouple (J type) for barrel and die zones

Control Mode: Closed-loop PID via SSR output

Additional Benefit:

  • Built-in CT input for heater current monitoring
  • Enables heater failure detection and high/low current alarms, improving process reliability

Set Points (SV):

  • Feed zone: 140 °C – 160 °C
  • Compression zone: 180 °C – 200 °C
  • Die zone: 170 °C – 200 °C

The PID controller continuously adjusts heater output based on real-time feedback, ensuring uniform melting and stable extrusion.

Advanced PID tuning (auto-tuning) minimizes temperature fluctuations, improves plasticization, and ensures consistent pipe flexibility and finish.

Process Flow

1) Raw Material Feeding:

PVC resin mixed with plasticizers, stabilizers, and additives is fed into the extruder hopper to form a uniform compound.

2) Melting & Plasticization:

Inside the extruder barrel, heaters and screw rotation generate heat and shear, converting the material into a homogeneous molten state.

Precise temperature control is critical—low temperature causes poor melting, while high temperature leads to degradation.

3. Pipe Formation (Die Section):

The molten material is forced through a circular die, forming the pipe.

Uniform die temperature ensures smooth surface finish and consistent diameter.

4. Cooling & Sizing:

The hot pipe passes through a vacuum sizing unit and water bath, where it solidifies and maintains its shape.

Controlled cooling prevents deformation and internal stress formation.

5) Haul-off & Winding: :

The pipe is pulled at a synchronized speed to maintain uniform thickness and diameter.

Finally, it is wound into coils (for pipes), ensuring proper flexibility and handling.

Conclusion

A digital PID temperature controller like the TCS4U45A0 integrated into a pipe extrusion line enables precise thermal control, uniform plasticization, and stable extrusion.

With added benefits like CT-based heater monitoring and alarm functions, the system enhances process reliability, reduces defects, and ensures consistent pipe quality.

The result is improved flexibility, durability, surface finish, and efficient large-scale production—making it a critical component in modern pipe manufacturing.
