In large facilities like power plants and refineries, equipment runs continuously, and even a small fault can escalate into costly downtime or safety risks. If operators rely only on scattered gauges or manual checks, early warning signs often go unnoticed.

That’s where an alarm annunciator comes in. An alarm annunciator centralizes fault signals, displays them with clear visual and audible alerts, and directs the operator to act immediately. Instead of searching for the source, the operator sees the exact condition that triggered the alarm, reducing response time and preventing escalation.

In this blog, you will learn what an alarm annunciator is, why it is important, the different types available, how it works, and its key applications across industries.

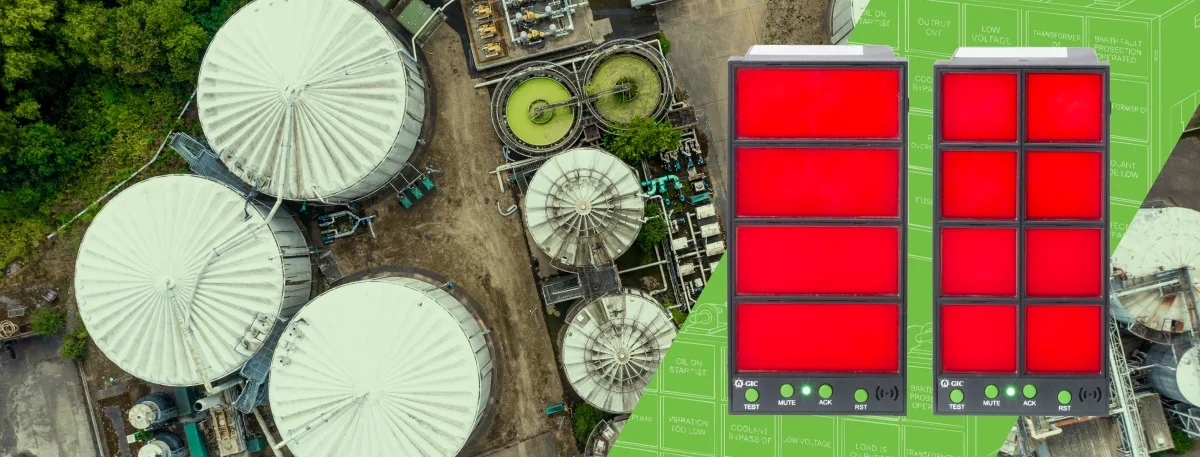

An alarm annunciator is a monitoring system that provides visual and audible alerts when abnormal conditions occur in industrial operations. It is typically built as a panel with multiple indicator windows and buzzers, where each window corresponds to a specific alarm point.

When a fault or hazard occurs, the assigned window activates with a blinking LED light and is often accompanied by a buzzer sound. This combination ensures the operator notices the alarm quickly and can identify exactly which process or equipment requires attention.

Modern annunciators also provide alarm prioritization and acknowledgement functions. Operators can assign severity levels so that critical alarms stand out from minor ones, helping them respond in the right order. Once an alarm is acknowledged, the buzzer is silenced to reduce noise distraction, but the visual signal remains active until the underlying issue is resolved.

An alarm annunciator is a crucial component of industrial control systems. It provides visual and audible alerts when preset conditions or events occur, helping operators respond quickly to issues and avoid costly downtime.

• Improves safety – Provides immediate visual and audible alerts that help operators act before small issues escalate into hazards.
• Enhances situational awareness – Consolidates multiple inputs and presents alarms in a structured sequence, making it easier to detect the most critical events.
• Prevents alarm flooding – Filters and prioritizes alarms so operators are not overwhelmed when multiple conditions occur at once.
• Supports efficiency – Helps prevent unplanned downtime by ensuring quick recognition and response to abnormal conditions.
• Protect equipment – Early warnings reduce the risk of machinery damage by prompting timely corrective action.
• Ensures compliance – Many industry standards (like IEEE and ISA guidelines) require annunciation systems for safe and reliable operations.
• Adaptable monitoring – With options like 8, 16, 32, or 48 window annunciators, they can be tailored to monitor parameters such as temperature, pressure, and voltage in power plants, factories, or process industries.

The alarm annunciator panel operates on real-time acquisition and logical evaluation. The input terminals receive dry contact or wet contact signals from sensors, switches, or protection devices. The system processes these signals through isolation and filtering before feeding them into the internal logic circuit or microprocessor.

The annunciator detects a change in input contacts from Normally Open to Closed or from Normally Closed to Open. The panel identifies the fault condition and switches from rest mode to alarm mode. The annunciator triggers a visual indication through high-brightness LEDs and activates the internal buzzer or an external alarm device.

Operators control the alarm state using four programmable keys: Mute, Acknowledge, Reset, and Test. Pressing the Mute key silences the buzzer while the visual indication remains. The Acknowledge key records the fault condition. The Reset key clears the alarm once the fault disappears. The Test key initiates a complete system check.

Industrial annunciators monitor factories, manufacturing plants, and power stations, alerting operators to equipment failures, process deviations, and safety hazards.

1. Panel-Mounted Industrial Annunciators

Installed on control panels, using LED or LCD indicators and audible alarms for quick detection of critical machinery or production line issues.

2. Rack-Mounted Industrial Annunciators

Fit into 19-inch industrial racks, centralizing alarms for chemical plants, refineries, and power facilities. Integrates with PLCs and SCADA systems for real-time monitoring.

3. Networked or Remote Annunciator Panel

Connect via Ethernet or industrial networks to allow remote monitoring of multiple sites and prompt alerts for process deviations or equipment malfunctions.

4. LED-Based Annunciator

Use high-visibility lights for individual alarm events. Ideal for production floors and hazardous zones, providing fast visual alerts.

5. LCD or Graphic Alarm Annunciator

Display alarm type, location, and history. Enhances operator awareness in complex industrial processes like automated lines or refineries.

6. Modular or Custom Alarm Annunciator

Configurable to plant-specific needs, combining visual, audible, and networked alerts. Scalable for expanding industrial operations.

• 3-Channel: Small-scale systems with limited monitoring points, suitable for localized machinery or compact control panels.
• 4-Channel: Compact setups requiring minimal alerts, commonly used in small production units.
• 6-Channel: Small control panels and localized monitoring in factories or industrial units.
• 8-Channel: Medium-sized process systems needing moderate alert coverage.
• 16-Channel: Complex control systems with multiple monitoring points across production lines.
• 24-Channel: Large process industries and power plants supervising numerous critical points.
• 48-Channel: Large-scale operations such as power grids, substations, and advanced manufacturing facilities.

Alarm annunciators are used in various industries to ensure safety and operational efficiency:

• Commercial and Industrial Safety – Detects fire hazards, smoke, excessive heat, and structural failures, alerting personnel immediately to prevent accidents and property damage.
• Process Monitoring – Monitors critical parameters like temperature, power usage, gas levels, and water levels in tanks or systems to ensure smooth operations and prevent failures.
• Power Distribution – Tracks voltage, current, and transformer health through transformer panels, substation panels, and battery charger panels to maintain uninterrupted power supply and avoid faults.
• Oil & Gas Industry – Monitors pressure, flow, and safety conditions in refineries and offshore platforms to prevent hazardous situations and optimize operations.
• Power Industry – Ensures continuous operation of turbines, generators, and cooling systems, providing real-time alerts for any electrical anomalies or surges.
• Process Industry – Keeps chemical, manufacturing, and production processes under control, detecting anomalies early to prevent downtime, spills, or equipment damage.
• Other Specialized Applications – Detects machine malfunctions in pumps, valves, and other critical equipment, as well as hazardous gas leaks, allowing for corrective action before issues escalate.

In conclusion, alarm annunciators play a critical role in industrial and safety systems by delivering immediate, actionable alerts.

The GIC Alarm Annunciator exemplifies advanced functionality with 2–48 windows, RS485 Modbus connectivity, replaceable LEDs, AC/DC fail detection, six ISA sequences, and a 90dB buzzer, all within a compact 100mm depth.

By converting sensor or protection device signals into clear visual and audible notifications, these devices enable operators to swiftly identify faults, reduce downtime, and maintain system reliability. Selecting the right type of alarm annunciator ensures efficient monitoring, enhanced safety, and seamless operation across diverse applications.
