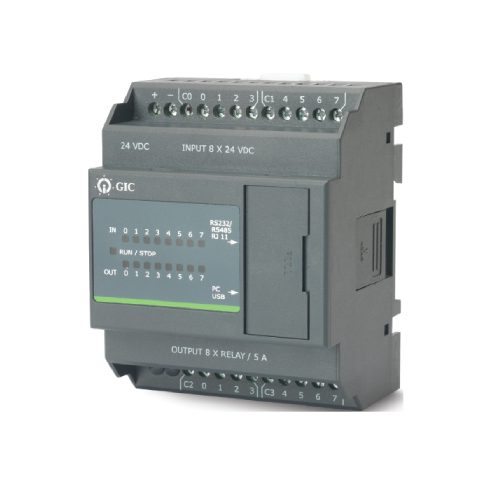

Mini PLC PL-100

Mini PLC PL-100

Mini Programmable Logic Controller PL-100

Key Features

  • Supports up to 112 IOS
  • Relay Base & Transistor Low Side Base modules
  • Stacking using FRC cable up to maximum 6 Expansion Modules
  • Isolated Digital Inputs with sourcing & sinking capability
  • Isolated Digital Transistorized Outputs (Low Side and High side driver)
  • High Speed Inputs – Single / Quadrature (1x/2x/4x)
  • High Speed Outputs (PTO/PWM / S-Profile)
  • Analog Voltage/Current Inputs and Outputs of 0-10 V / 4-20 mA
  • PC Software for programming, online & offline simulation
  • Standard RS232/RS485 port with RJ11 for HMI/SCADA Interface
  • Modbus RTU support
  • 128 Weekly, Monthly & Yearly Time Switches each
  • Multiple Timers, Counters including retentive counters, Hour meters & many more function blocks
Clear selection
SKU: N/A Category:
Download Catalog

Available Variations
SKU Description Quantity Add to Cart
PC10SN000NPL-Soft
28D33B0Accessory, USB 2.0 Cable, Type A Male to B Male
PC10AC2RS232 Communication Cable, PL-100 to HMI / SCADA
PC10ED08001NExtension with 8 Digital Inputs
PC10AC3RS485 Communication Cable, PL-100 to HMI / SCADA (DB9 Female to RJ-11)
PC10ED08002NExtension with 8 Relay Outputs
PC10AC4RS485 Communication Cable, PL-100 to HMI / SCADA (DB9 Male to RJ-11)
PC10ED16003NExtension with 8 Digital Inputs and 8 Relay Outputs
PC10ED08004NExtension with 8 Transistor Low Side Outputs
PC10ED08005NExtension with 8 Transistor High Side Outputs
PC10EA04001NExtension with 4 Analog Inputs (Max. 24, 0-10V / 4-20mA)
PC10EA02002NExtension with 2 Analog Outputs (Max. 12, 0-10V / 4-20mA)

Description

Downloads

Catalogue

The Mini PLC PL-100 is a versatile solution for industrial automation, supporting up to 112 IOs. Its modular design allows for flexible expansion with Relay Base and Transistor Low Side Base modules. With isolated Digital Inputs and Transistorized Outputs, the PLC ensures robust signal control.

Featuring high-speed inputs, high-speed outputs, and analog voltage/current capabilities, the PLC offers comprehensive functionality. The dedicated PC software facilitates seamless programming, simulation, and HMI/SCADA interface. Moreover, the PLC supports Modbus RTU, enhancing its compatibility with various systems.

The PLC’s extensive library includes 128 weekly, monthly, and yearly time switches, multiple timers, counters, retentive counters, hour meters, and more. Elevate your automation experience with the Mini PLC PL-100, a compact yet powerful solution for diverse industrial applications.
