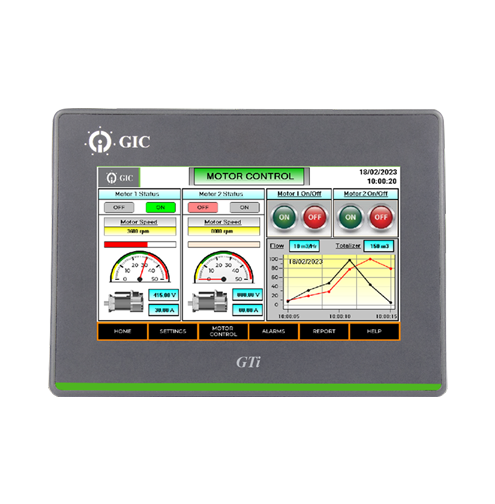

4.3 Inch Touch Screen HMI TFT Display – Human Machine Interface

4.3 INCH TOUCH HMI

Key Features

• 4.3” TFT display options with & without Ethernet model
• Equipped with powerful CPU Cortex-M7, 600MHz
• Built-in RTC (Real Time Clock)
• Higher brightness level up to 440 cd/m2 for display
• Long backlight life up to 50,000 hours for display
• Resolution (Pixels) : 4.3”(480×272), 7”(800×480), 10.1”(1024×600)
• Memory : RAM (32MB for all models), ROM (32MB for Non-Ethernet model & 64MB for Ethernet model)
• Resistive type touchscreen
• 2 Serial & 1 Ethernet port supported for programming & communication
• 1 USB Host & 1 SD card slot interface support for data log & application download (Data log support up to 4 GB on external device)
• 1 USB Slave port support for application upload/download
• Operating temperature 0 to 50 °C
• PCB conformal coating protection
• Shock & vibration protection as per IEC standard
• IP65 Protection for front panel
• CE, UKCA, ROHS Certified
